Article number: 300058457

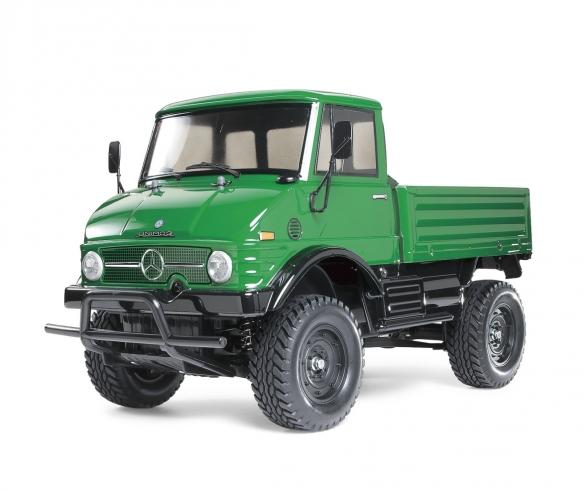

Product: 1/10 RC Mercedes Benz Unimog 406 CC-01
In the 1960s, Mercedes-Benz built the Unimog 406 Series. These
multi-purpose trucks were known for being 4WD and having exceptional
off-road performance. The Unimog can be used in environments such as
deserts, jungles and mountains. Unimog is an acronym for
"UNIversal-Motor-Gerat" with Gerat translating to mean machine or device. The vehicles featured an inline 6-cylinder diesel engine,
8-speed transmission, and front/rear lockable differentials.
All Terrain Chassis
Excellent ground-hugging, long-stroke suspension system consists of
front double wishbone and rear 4-link rigid setups and is equipped with
4 oil dampers. Highly reliable and efficient full-time 4WD system
features a front-mounted motor, which transmits power to the front
wheels via the gearbox and to the rear wheels via the propeller shaft
with universal joints. Front and rear differentials enable smooth
cornering. For even greater off-road performance on rough terrain, the rear differential may be locked during assembly.
Warning! Not suitable for children under 14 years.
Product details
Features:
● Length: 407mm
● Width: 220mm
● Height: 229mm
● Weight: 1460g
● Wheelbase: 242mm
● Tread (Front & Rear): 163mm
● Tire Width/Diameter (Front & Rear): 33/90mm Ladder Frame Bathtub Type Chassis
● Longitudinally Placed Motor Shaft-Driven Full-Time 4WD
● Front and Rear 3-Bevel Differential Gears
● Front Suspension: Double Wishbone, Rear Suspension: 4-Link Rigid
● Front and Rear CVA Oil Dampers
● Gear Ratio＝1：14.67
● Electronic Speed Controller included
● RS540 Type Motor Included
