Warning! Not suitable for children under 14 years.
Product details

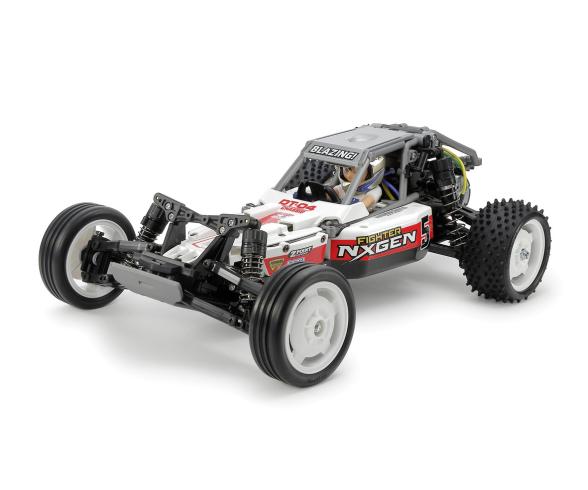

- This is a 1/10 scale R/C model assembly kit. Length: 395mm (with 265mm
wheelbase) / 404mm (with 280mm wheelbase), height: 120mm, width: 248mm.
- Two wheelbases can be selected: 265mm for emphasis on handling or
280mm for emphasis on stability. Reassemble the front section (arms, etc.) to switch between two different wheelbases

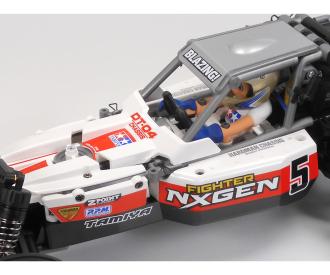

- The distinctive body features multiple body panels connected to pipe frames, a design inspired by full size racing buggies.
- Its 2WD rear-wheel drive chassis has a lightweight, durable bathtub frame which is newly designed.
- The chassis has an inline battery pack position, and a rear-mounted motor to give the rear wheels plenty of traction.
- The sealed gearbox has a built-in gear differential for smooth cornering and helps keep out dust and dirt
- Side pontoons have the ESC in the left and the receiver in the right.

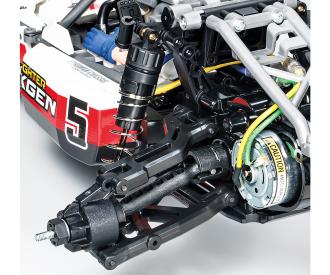

- The 4-wheel independent double wishbone suspension with long arms employs CVA oil dampers.
- Front suspension arms have a skid angle of 22.5 degrees for superlative off-road handling and performance.
- The 3-piece steering tie-rod gives true steering. (It is the first time to employ 3-piece steering tie-rod in this series.)

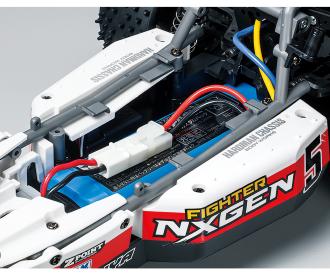

- Access the battery pack from the car top. Turn the hood lever and remove the side pins then lift up the roof.
- After that, slide the driver figure forward to access the battery.
- Ribbed tires are on the front, and grippy square spike tires on the rear.
- Hex hubs on the front allow attachment of different wheels.
- Rear damper attachment positions and rear upper arms can be changed.

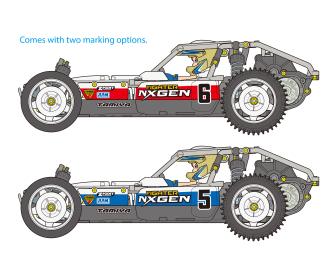

- Comes with two marking options and one driver figure. Use Tamiya Color paints (sold separately) to paint the driver figure.
- Many separately sold DT-02/DT-03 parts are compatible, with a wealth of options for fine-tuning setup.
