1:10 XM-01 Pro Chassis Kit, RC assembly kit

Product details

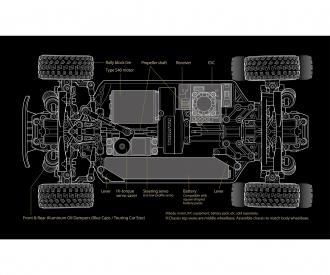

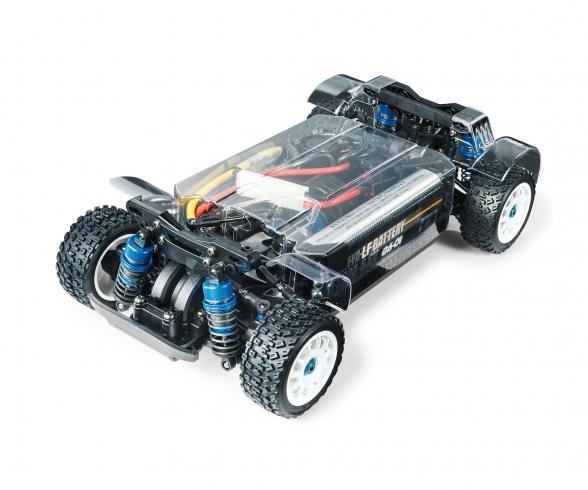

- This is a 1/10 scale R/C chassis assembly kit.
- Equipped with front mid-ship, longitudinal motor position.
- Changing rear section allows a choice from three wheelbases (short: 210mm, middle:225mm, long: 239mm).
- Bathtub frame chassis and polycarbonate chassis cover plus front inside polycarbonate cover and rear section are newly-molded parts. Mud guards helps prevent dirt and dust from getting inside.
- Caster angle can be set at 5 degrees by suspension mounts.
*For comparison, the XV-02 PRO chassis kit uses caster blocks which feature 6-degree caster angle.
(XV-01 chassis: 10-degree caster angle)
- The drivetrain employs oil-filled gear differential for front and rear.
- Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive
balance.
- Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
- It features a longitudinal upright battery pack position in the center-left for optimum balance.
- Front bumper with skid angle contributes to reduce surface contact.
- Aluminum dampers are employed at front and rear.
- M-Chassis 11-spoke racing wheels (Item 51394) are paired with 60D rally block tires (Item 51427).
- Front and rear universal drive shafts come as standard.
- Compatible with center diff setup and separately sold slipper clutch.
- Some Hop-Up Option parts for the XV-02 PRO chassis kit can be used.
- Low-profile servo is recommended. (Standard servo can be used, but it comes into contact with the front inside polycarbonate cover.)
- Please note that this chassis requires separately sold body, battery pack, motor and R/C equipment.
