New

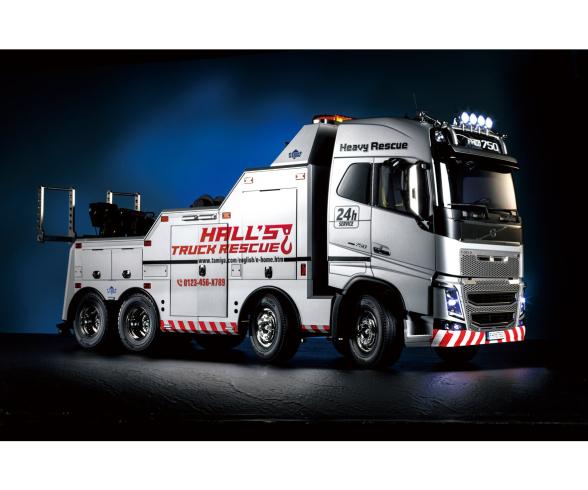

TAMIYA presents the Volvo FH16, the first truck with 4 axles and
steerable double front axle. The chassis has been converted to 8x4 and
is the perfect basis for a tow truck. The crane superstructure is
extremely robust and consists of many metal parts. The crane is powered
by an optionally available ACU unit (order number 300056553). This unit allows the crane to be moved up and down.
The tow truck now allows model building enthusiasts to create a whole
new world of play. It can pick up and tow 1/14 scale model trucks.
The model is delivered as a kit and already includes numerous
accessories, such as photo-etched parts for the radiator grille, turnbuckles with chains for securing the load, and much more.
The TAMIYA MFC-03 multifunction unit (300056523) is recommended for the
drive, lighting and sound. Due to the enormous length of the model, only
the standard MFC LEDs need to be replaced with the special ones with longer cables (300056549 to 300056551).
The FH16 is the first TAMIYA truck model with a permanently bolted
driver's cab. This allows the MFC to be installed behind the seats, leaving the interior fully visible.
The
body parts driver's cab, H, M, DD, HH, LL, MM and NN are already pre-painted with Tamiya TS-17 silver in this kit version.
The body parts cab, H, M, DD, HH, LL, MM and NN parts are already pre-painted with Tamiya TS-17 silver in this kit version.
Required accessories:
- At least 4-channel remote control - Carson Reflex Stick recommended
500501006 (6-channel), 500501003 (14-channel) or
500501004 (14-channel LCD display)
- 7.2V NiMH battery pack, charger
- Steering servo + servo for manual transmission
- Speed controller or TAMIYA multifunction unit MFC-03
300056523 for driving, light and sound functions
- Optional ACU unit (300056553) for driving the
crane arm
Volvo FH16 tow truck model kit,
silver pre-painted ABS
plastic body, aluminium
ladder frame, 2 driven
rear axles, 3-speed manual
transmission, chrome rims,
instructions, 540 electric motor,
Warning! Not suitable for children under 14 years.
Product details
- 1:14 scale model kit
- Dimensions: length 750 mm, width 195 mm, height 300 mm
- True-to-life ABS body replica of the Volvo FH16
with numerous tuning parts, such as photo-etched parts in the front grille
and cab interior
- Pre-painted body parts (cab, H, M, DD, HH, LL, MM and NN parts) in Tamiya TS-17 silver
- Double axle at the front with steerable axles via a servo
- The rear tow crane is realistically replicated and
consists of many metal parts. The
separately available ACU (300056553) is required for the drive.
- The metal frame is reinforced.
- Power is transmitted from the front-mounted motor to the
two rear axles via a metal cardan shaft.
- 2 differentials on the rear axles for tight cornering
- Detailed metal leaf springs and friction dampers
- Includes TR mighty-tuned motor (35T) for perfect
power delivery to the two driven rear axles
- 3-speed manual transmission can be controlled via optional 4-channel
remote control.
- Firmly bolted driver's cab
- Highly detailed interior. The multifunction unit (not included ) can be installed behind the seats.
- Recommended accessories: MFC-03 multifunction unit (300056523
for driving, light and sound functions.
- Note: Optional accessories are LEDs with longer cables for
this model, which must be replaced by the standard LEDs in the MF
. Order numbers: 300056549-56551)
