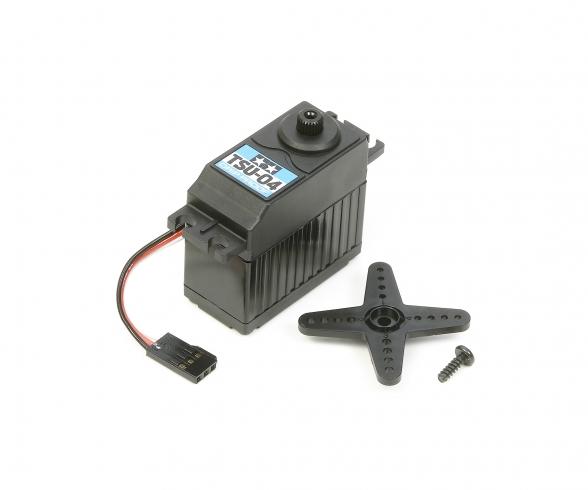

TSU-04 Analog Servo, RC servo, drip proof

The TSU-04 Analog Servo brings compact RC control hardware into a drip-proof format built for model vehicle use. Its 40.0 x 20.0 x 37.0 mm housing and 41 g weight make it easy to place in chassis layouts where space, balance and clean linkage routing matter, while the attached lead and connector keep installation straightforward. At 6V, the servo delivers 4.0 kg·cm torque and a movement speed of 0.17 sec per 60°, giving steering or control systems a clear, direct response. The operating voltage range of 4.8V to 6.0V supports common RC electronics setups. The operating angle reaches more than 45° to one side, including neutral, which gives the output shaft usable travel for linkage geometry and horn positioning. A cross-shaped servo horn and a 2.6 x 8 mm tapping screw are included for attachment. Mounted in an RC chassis, the TSU-04 suits steering duties and other control tasks that rely on measured rotational movement through the servo horn. On mixed surfaces or in changeable weather, the drip-proof construction adds reassurance when a model meets spray or damp ground during a run.



Warning! Not suitable for children under 14 years.
