TSU-05 Digital Servo, RC accessory, drip proof

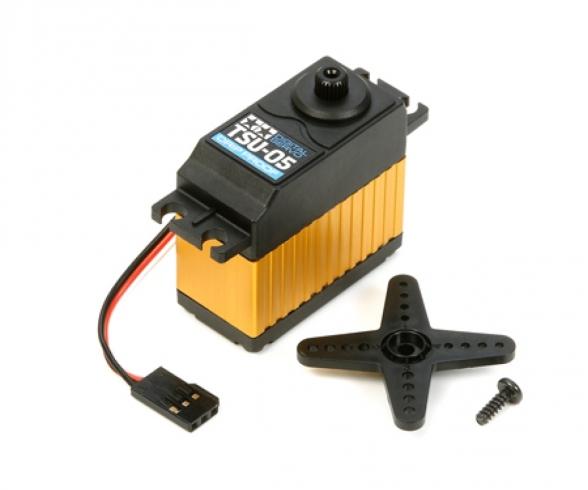

The TSU-05 Digital Servo brings digital control, drip proof construction and compact RC fitment into one electronic component for steering and linkage tasks. With 4.0 kg*cm output torque at 6V and an operating speed of 0.17 sec/60 degrees at 6V, it combines controlled force with quick response when a model needs accurate movement through the servo arm. Its housing measures 40.0 x 20.0 x 37.0 mm and weighs 40 g, making it suitable for installations where space and component weight both matter. The operating angle reaches more than 45 degrees to one side, giving the output shaft a useful sweep for connected steering or control linkages. Power supply is rated for 4.8 to 6.0V, matching common RC electronics layouts. A gold-colored heatsink is fitted to the case, and the set contains 1 drip proof digital servo, 1 servo horn and 1 2.6 x 8 mm tapping screw for horn attachment. Mounted in an RC chassis, the TSU-05 can drive steering inputs through the splined output shaft and horn, translating electronic commands into mechanical movement at the linkage. It also suits other model control functions that rely on compact servo travel, stable voltage input and a clearly defined mounting format.
