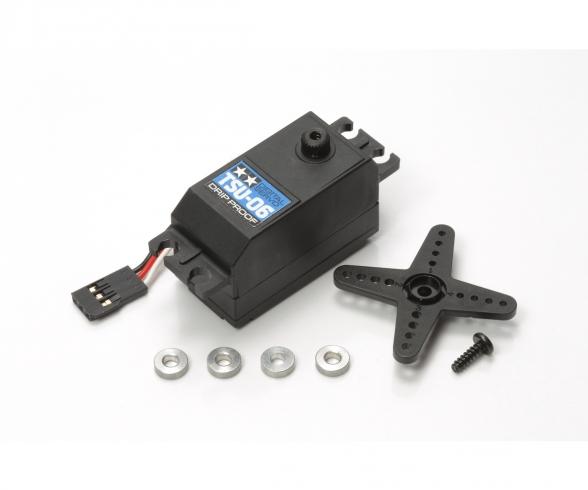

TSU-06 Digital Servo, low profile RC servo

The TSU-06 Digital Servo combines a low-profile layout with digital control in a compact RC component built for vehicle installations where space is limited. Its 40.0 x 20.0 x 26.0 mm housing and 26 g weight make it easier to place the servo in tighter chassis areas while keeping steering or linkage movement direct and controlled. This servo operates on 4.8 to 6.0V and reaches 3.5 kg-cm torque at 6V, giving compatible RC vehicle models a clear, mechanical response at the linkage. Operating speed is 0.1 sec/60° using 6V, and the operating angle reaches more than 45° to one side including trim, which supports practical steering travel in installation. The attached cable and connector link the servo to onboard electronics, and the supplied servo horn mounts on the splined output shaft with the included 2.6 x 8 mm tapping screw. Included spacers can be used to adjust attachment during installation. Drip-proof construction adds protection in running conditions with light moisture. When used as a steering servo, a servo saver is required. This servo is intended for RC vehicle models and cannot be used with Tamiya TEU-105BK and TEU-302BK ESCs.
