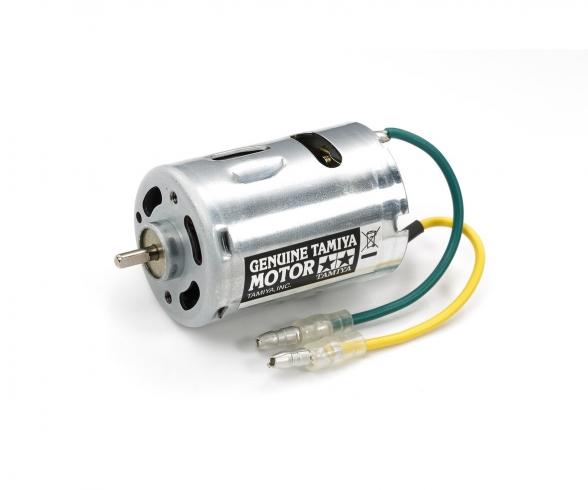

Type 540-N electric motor, hobby drive unit

The Type 540-N electric motor brings a classic brushed drive format to model and RC applications with a standard 540 size and a direct output shaft for gear-driven setups. Its no-load speed of 13,800 rpm gives drivetrains a lively operating range, while the silver metal housing with ventilation openings supports heat dissipation during running sessions. The motor is specified for an input voltage range of 7.2V to 8.4V, which places it within common hobby power systems used in many assembled vehicles and mechanical projects. At 7.2V, it produces a maximum torque of 283 gf/cm and draws 8.1 A of current, giving clear reference points when matching the drive to gearing and electronic components. The use of kit-included pinion gears is recommended. The attached green and yellow wires end in metal connectors for straightforward integration into an existing electrical layout. As a replacement motor or standard drive choice, this unit suits builds that need a known 540-format specification rather than an undefined upgrade path. It fits naturally into workshop setups where gearing, voltage and current figures guide the selection of compatible drivetrain parts and control hardware.
