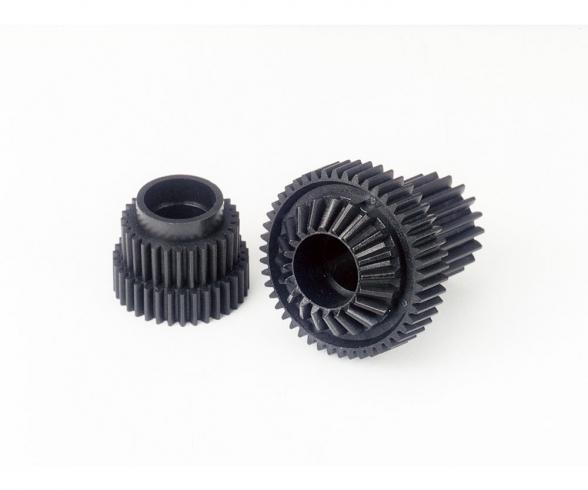

TL01 Speed-Tuned Gear Set, RC gearbox upgrade

The TL01 Speed-Tuned Gear Set changes the character of a TL-01 drivetrain with a replacement 47T spur gear and 29T counter gear. Installed in place of the normal transmission gears, this hop-up option shifts the final drive toward higher speed and gives the chassis a sharper, faster-running setup on the track. The ratio change is clearly defined across 3 pinion choices. With a 19T pinion, the ratio moves from 7.96 to 5.95; with 21T, from 7.20 to 5.39; and with 23T, from 6.57 to 4.92. The technical guide also shows grease application points during assembly, helping the gear teeth mesh correctly inside the gearbox case. Bearings and a hollow carbon gear shaft are shown as available separately, and their use is noted for reducing burden on the motor during running. Scope of delivery: 1x Speed Gear. This upgrade suits TL-01 builds that are being tuned beyond the standard transmission layout. In workshop use, the gear swap gives builders a direct mechanical change to experiment with, while on-road running highlights the effect through a more speed-oriented drive setup.



Warning! Not suitable for children under 14 years.
