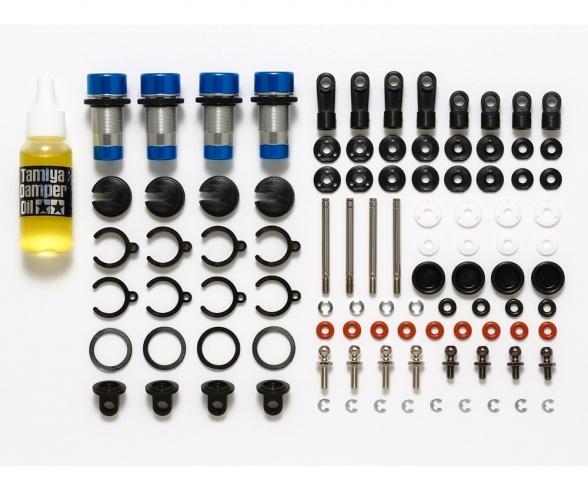

GF-01 Alu. Oil Damper (4), RC damper set

The GF-01 Alu. Oil Damper set adds 4 aluminum oil dampers to GF-01 and WR-02 chassis cars, bringing more controlled suspension movement to rough ground and uneven running surfaces. Silver-finish cylinders with blue anodized caps and ends give the chassis a crisp mechanical look while introducing a functional oil-filled damping setup. The set is supplied as an aluminum oil pressure shock absorber set with 99 pieces, including the small attachment parts needed for mounting. The assembly documents show 3-hole pistons, damper shafts, rod guides, O-rings, spacers and ball connectors working together inside each cylinder to manage suspension travel. Front and rear damper builds differ by chassis position, with 2 dampers configured for the front and 2 for the rear. The included damper oil is specified as #400 in the assembly notes. Use with spring kit 53974 is stated in the data, and G6-01 or G6-01TR chassis require 6 dampers where that setup is used. Installed on a GF-01 or WR-02 model, the dampers support more composed running when the chassis crosses loose ground, bumps and broken surfaces. The color-contrasting hardware also stands out during workshop assembly and suspension tuning, where each cylinder, cap and end remains easy to identify at a glance.



Warning! Not suitable for children under 14 years.
