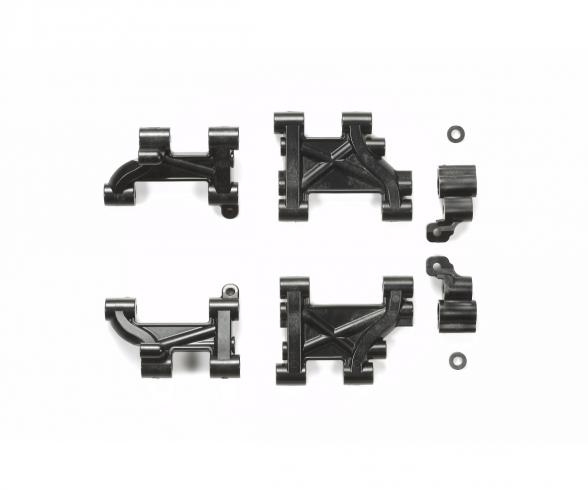

M-05 VII Suspension Arm Set, chassis parts

The M-05 VII Suspension Arm Set updates the front and rear suspension layout with 1-piece arms developed for the M-05 Ver.II platform. Compared with the standard 2-piece M-Chassis arrangement, the single-piece design increases rigidity at the arm section, which supports a more direct handling feel during setup and running. This set is used on Item 58593 M-05 Ver.II PRO Chassis Kit and also works as a service replacement when original arms are worn or damaged. The front installation uses chassis kit-included parts in place of C3, C4 and C8, while the rear installation replaces C11 and C19. Left and right arm orientation matters during fitting, and the instruction material shows the required mounting positions for front and rear assemblies. For rebound stroke adjustment on M-05 and M-05 PRO chassis, Item 54605 chassis parts are required so the droop screw can be used on the suspension arm itself. Compatibility covers M-05 Ver.II PRO, M-05 and M-06 chassis. M-05 Version 1 and M-06 platforms require parts modification as described on the 54606 instruction sheet. The set suits maintenance, repair and chassis updates where a Version 2 suspension specification is needed.
