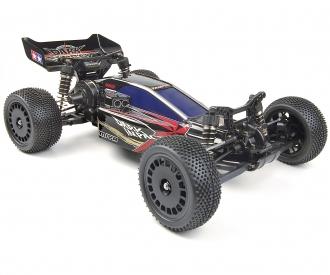

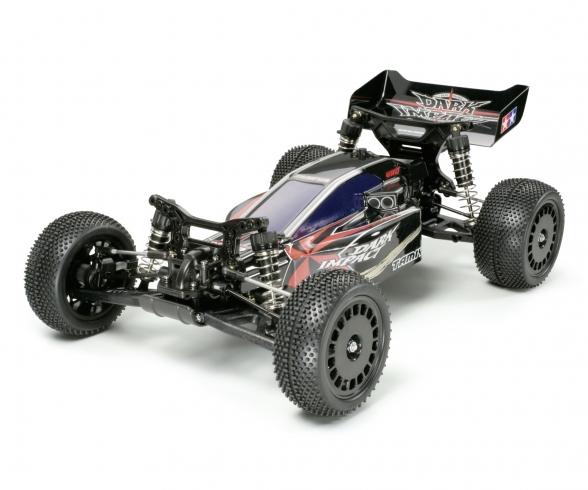

Article number: 300058370 Product: 1/10 RC Dark Impact 4WD Buggy DF-03

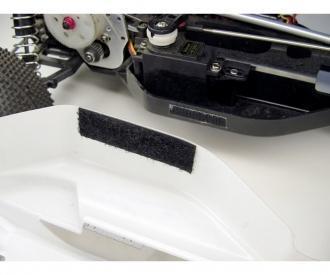

This 1/10 scale 4WD buggy is specially designed to excel in off-road buggy racing. It features a mid-rear mounted motor and longitundinally mounted battery for optimum balance for jumping. Battery is inserted through the bottom of the chassis, eliminating need to remove body, which makes routine maintenance easy and quick. High performance shaft drive 4WD combines with suspension system featuring extra long suspension arms for improved stability and off-road handling.
About the Model
- High performance 1/10 4WD buggy chassis designed
for off-road racing

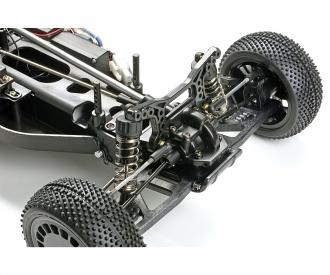

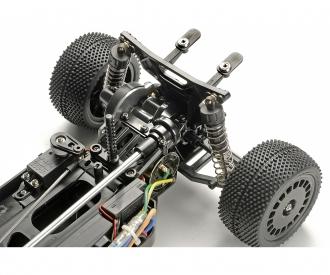

- 4-wheel independent double wishbone suspension
features CVA oil dampers and extra long suspension
arms for improved stability and handling
- Includes sealed diff gearbox indispensable for off-road running
- Features full ball bearings
- Electronic Speed Controller (Not Included)
- Includes 540 type motor
- Newly designed off-road tires and wheels featured larger
diameter and width, and new tread pattern designed for
excellent running and control on hard dirt tracks
- Tires: High Density Spike Tires K (4WD/Front, 62/25),
HighDensity Spike Tires K (Rear, 62/35)
- Wheels: Large Dish Wheels (4WD/Front, 62/25),
Large Dish Wheels (Rear 62/35)
- 2.94 internal gear ratio.
Warning! Not suitable for children under 14 years.
Product details

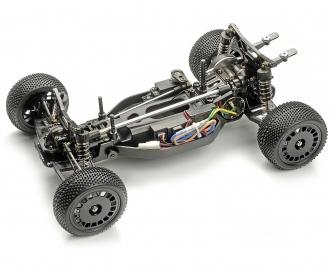

Technical Details:
• 4-Wheel-Drive Buggy
• Aluminum propeller shaft
• Fully ball bearing

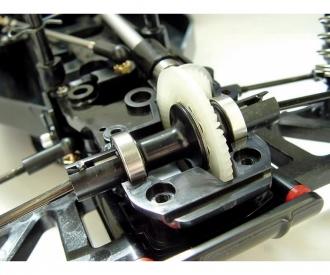

• Front/rear ball differential
• Reinforced composite plastic wishbones
• Adjustable toe-in and camber
• Steel drive shafts with joint cups
• Steel shafts for wishbone attachment

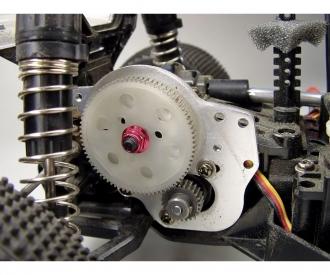

• Aluminum motor mount plate

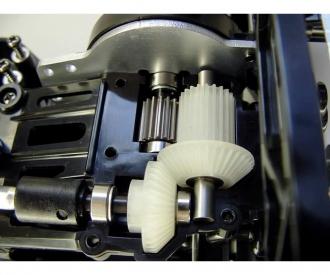

• Main shaft with steel pinion gear
• Rear racing uprights
• Rigid plastic bathubframe chassis with countersunk screws

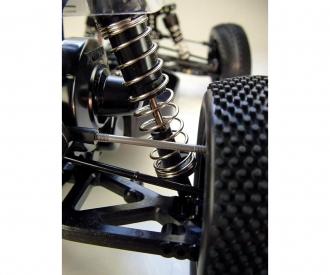

• C.V.A. oil-filled shock absorbers
• High grip spike tires
• Foam ring tire inserts (yellow)
• Lightweight, one-piece racing wheels in white
• Clear polycarbonate body
• Polycarbonate rear wing
Technical specifications:
• Length: 425 mm
• Width: 230 mm
• Height: 150 mm
