  • Article number: 300056357
  • Age recommendation: from 14 years

€639.99

incl. VAT
free shipping
(within the EU)

soon available again

We will notify you by email as soon as this item is available again.
Product information
Product information

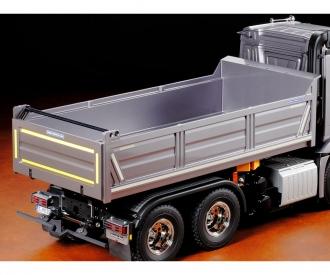

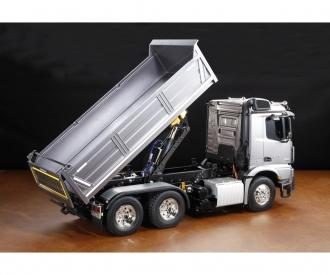

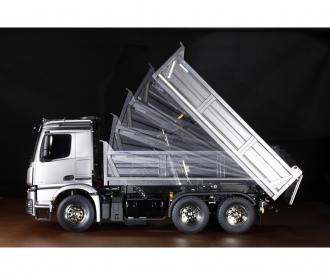

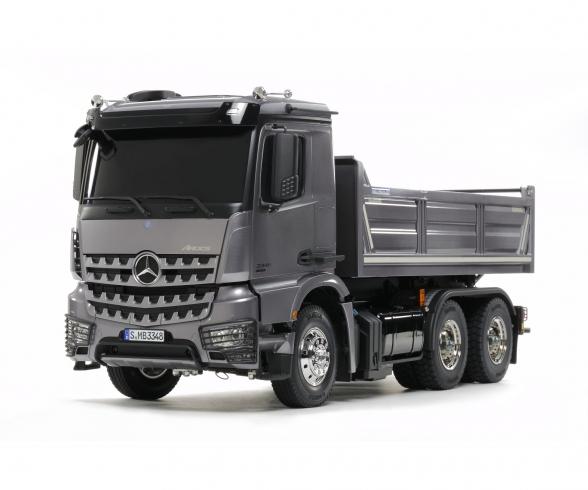

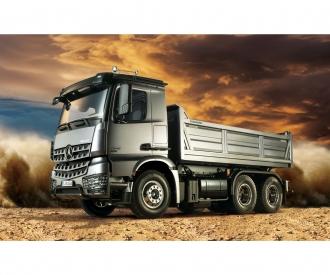

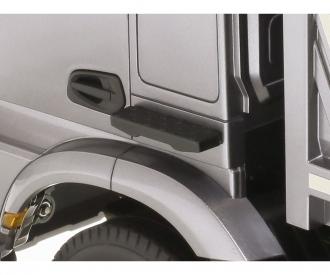

The 1:14 Arocs 3348 Tipper Truck RC assembly kit brings heavy-duty truck character into scale form with a detailed 6x4 layout, a realistic tipper bed and a long, purposeful stance at 576 mm x 190 mm x 267 mm. The cab captures the slimline shape of the full-size truck, with a bucket tooth design grille, headlight guards, front bumper and skid plate details that give the front end a distinctly industrial look. A 1-piece resin bed reinforced with a metal frame adds substance to the rear section and supports the working tipper appearance shown when the bed is raised. The chassis uses a wheelbase of 257 mm + 103 mm, with tread measurements of 156 mm at the front and 138 mm at the rear double tires. Front and rear caster, camber and toe angles are all set at 0°, matching the model's straightforward heavy-truck geometry. Tire dimensions are 22/83 mm at the front and 22/84 mm at the rear, and the assembled truck weighs about 4.3 kg with R/C equipment and battery pack attached. The model suits bench assembly, display and controlled driving sessions where the long frame, triple-axle layout and raised bed create a convincing construction-site scene. A separately available 4-channel transmitter is needed to operate the gear shifting, and R/C equipment and a battery pack are required separately.



Warning! Not suitable for children under 14 years.

Product details

★Length: 576mm, Width: 190mm, Height: 267mm,
   Weight: Approx. 4.3kg (*with R/C equipment and
   battery pack attached)
★Wheelbase: 257mm+103mm
★Tread: 156mm (Front), 138mm (Rear, Double Tire)

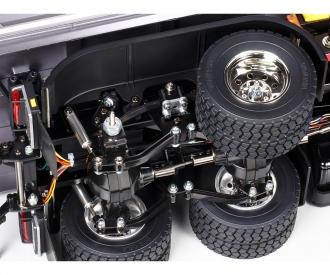

★Chassis: Aluminum & Polycarbonate Resin Ladder Frame ★Suspension: Front/Rear Leaf Springs
★Caster Angle: 0° (Front & Rear)
★Camber Angle: 0° (Front & Rear)
★Toe Angle: 0° (Front & Rear)
★Dampers: Front/Rear Aluminum Friction Dampers
★Drivetrain: Rear 2-Axle Drive
★Transmission: 3-Gear Transmission (gear shifting
   operated from transmitter)
★Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1,
   (3rd Gear) 10.66:1
★Diff Gear: 3-Bevel Diff.
★Motor: TR Mighty-Tuned (35T)
★Tire Width/Diameter: 22/83mm (Front), 22/84mm(Rear)
