Product information

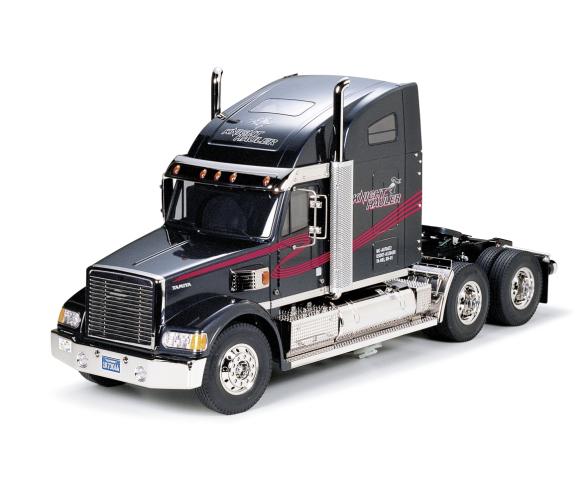

The 1:14 Knight Hauler RC truck kit brings American highway style into a large-scale build with a 440 mm length, a 188 mm width and a dark tractor-truck body defined by twin exhaust stacks, a tall sleeper cab and chrome exterior parts. At this size, the model carries strong road presence on the bench and on the ground, while the 1:14 format leaves room for visible mechanical detail across the frame, driveline and cab parts.

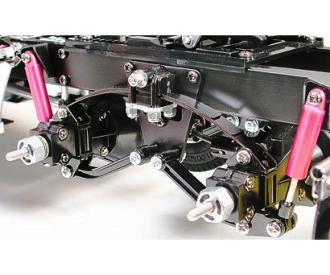

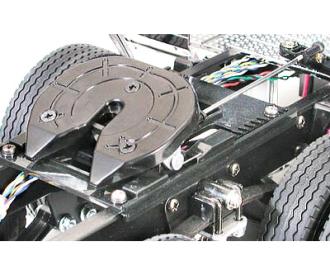

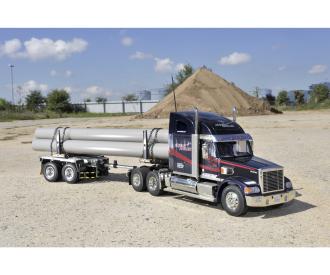

Under the body, the aluminum ladder chassis uses a 272 mm wheelbase and a tandem rear axle layout that match the long-haul truck format. Front tread measures 156 mm and rear tread 138 mm, shaping the narrow-front, dual-drive stance associated with full-size road tractors. The drivetrain centers on a 3-speed gearbox with selectable 10.6:1, 17.7:1 and 32.4:1 ratios, adding a shifting function that changes how the truck delivers power. Weight is listed at 2300 g, giving the assembled model substantial mass for a grounded feel during running and coupling work. A fifth-wheel plate sits behind the cab to accept compatible semi-trailers in realistic tractor-trailer configuration.
On a workshop table, the long frame rails, gearbox parts, propeller shafts and suspension hardware create a build with clear mechanical structure rather than a simple shell-over-chassis layout. Once assembled, the Knight Hauler suits slow-scale driving, trailer hookup sessions and display alongside transport-themed trailers and cargo scenes. Radio gear, a battery pack, a charger and paints are required separately.
Warning! Not suitable for children under 14 years.
Product details
Technical data:
- Length: 17.32 inches (440mm) Width: 7.40 inches (188mm)
- Wheelbase: 10.71 inches (272mm)
- Front Tread: 6.14 inches (156mm) Rear Tread: 5.43 inches (138mm)
- Weight: 5.07 lbs. (2300g)
- Chassis: Aluminum ladder
- Gear Ratio: 10.6:1 - With the 3-speed gearbox,
10.6:1, 17.7:1 and 32.4:1 are possible
- Wheels & Tires: Chrome/Radial
