1:14 MAN TGX 26.540 6x4 RC assembly kit

1:14 MAN TGX 26.540 6x4 RC assembly kit

(0)
  • Article number: 300056370
  • Age recommendation: from 14 years

€519.99

Quantity:
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
Add to wish list
Please wait
Added to wish list
Your Browser is not supported or Javascript is disabled.

Delivery time 1-3 working days within Germany

Product information

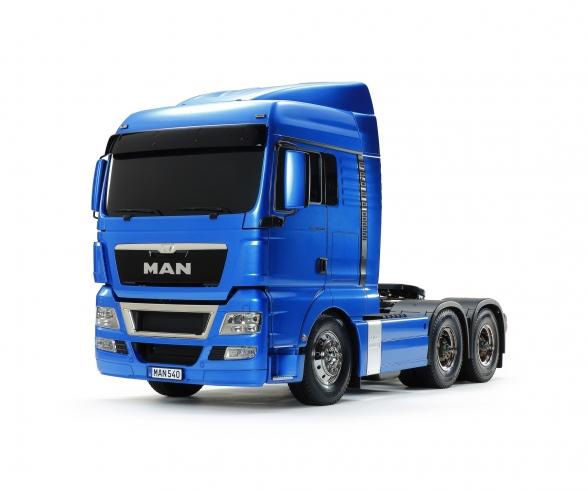

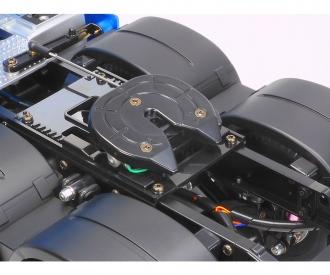

This 1:14 RC assembly kit recreates the MAN TGX 26.540 6x4 XLX as a detailed tractor truck with a strong road presence and a finished cab in Light Metallic Blue. At 526 mm long, 193 mm wide and 301 mm high, the model has the size and stance to make the ladder frame, roofline and fifth-wheel area read clearly during building and driving. The chassis uses aluminum channels and a front-mounted Type 540 motor that drives the rear wheels through a sealed gearcase and propeller shaft joint. Gear ratios of 1:32.49 in low, 1:17.66 in 2nd and 1:10.66 in top gear give each shift a distinct change in running character. Both rear axles are equipped with differentials, and the coupler unit allows connection to a separately available semi-trailer. Large curved mirrors with twin reflective surfaces, MAN EURO 5 plated details and TGX 26.540 door markings add model-specific finish points across the cab. During bench assembly, the painted body sections and metal detail parts create a build with less finishing work on the main cab surfaces. On the floor or on a display shelf, the long wheelbase, dual rear axles and tractor-truck proportions give the model the look of a working highway hauler. Radio gear, a battery pack, a charger and paints are required separately.

Product details

- This is a 1/14 scale R/C model assembly kit. Length: 526mm, width: 193mm, height: 301mm.
- The form of the TGX 26.540 6x4 XLX is captured in style.
- Cab, F, H, K, M and CC parts are molded in blue and pre-painted in Light Metallic Blue (TS-54), with a urethane top coat for a stunning finish.

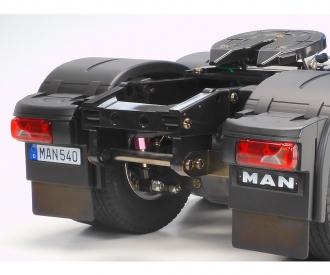

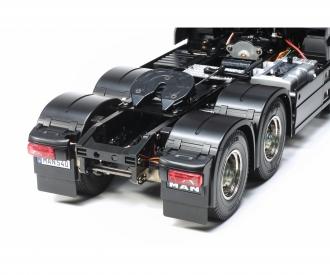

- The ladder frame chassis features aluminum channels, suspension with metal leaf springs and friction dampers, and rear axles equipped with differentials.
- 3-speed transmission can be controlled to allow gear shifts via 4ch R/C transmitter.
- Just like the actual vehicle, this model comes with large-sized curved side mirrors that feature two mirror surfaces.Both rear axles are equipped with differentials.
- Metal-plated parts are included to depict the MAN EURO 5 engraving and right/left step plates.
- Metal transfers also recreate the MAN logo/Lion emblem on the front grille and TGX 26.540 logos on both doors respectively.
- *Multi Function Control Unit (MFC-03, sold separately) offers light, sound, and vibration operation. Built_in ESC allows a low-speed driving to enable connection to a trailer.
