DF-03Ra Slipper Set, RC chassis option part

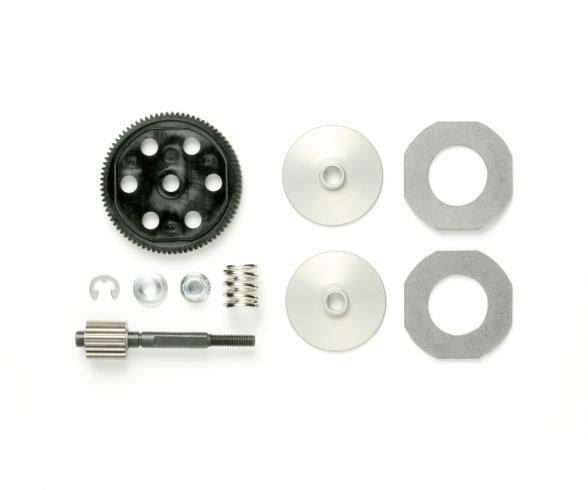

The DF-03Ra Slipper Set adds an adjustable slipper clutch system to DF-03 chassis builds, pairing an 82T spur gear with clutch hardware that helps the drivetrain cope with the repeated shock of off-road running and jumping. Instead of a fixed connection alone, the assembly uses controlled slip at the spur gear to moderate sudden load changes through the transmission. The set works through a stack of pressure discs, slipper sheets, a slipper spring, spring retainer and 4 mm flange lock nut mounted around the spur gear. A 1 mm standard adjustment position is shown for the spring setting, and loosening the nut from that reference increases slipper action. The included 82T gear also opens further ratio choices when paired with compatible R/C 05 pinion gears in 23T, 25T, 26T or 27T sizes, as shown in the gearing chart for the DF-03 system. This option part suits maintenance, repair and tuning work on DF-03 based RC buggy setups where drivetrain response matters on loose ground and after landings. The 10-piece set keeps the main clutch components together for workshop installation, whether replacing worn parts or adding slipper control to a chassis that needs a broader tuning range.



Warning! Not suitable for children under 14 years.
