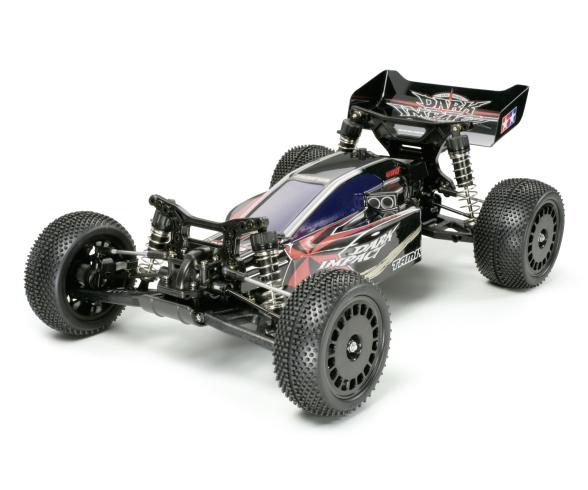

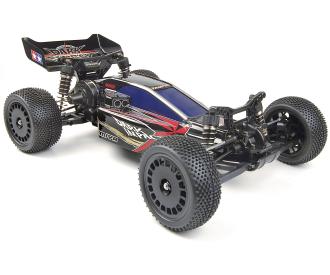

1:10 Dark Impact, RC buggy kit, 4WD DF-03

1:10 Dark Impact, RC buggy kit, 4WD DF-03

(0)
  • Article number: 300058370
  • Age recommendation: from 14 years

€219.99

Quantity:
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
Add to wish list
Please wait
Added to wish list
Your Browser is not supported or Javascript is disabled.

Delivery time 1-3 working days within Germany

Product information
The 1:10 Dark Impact is an RC buggy kit built around the DF-03 chassis, combining shaft-driven 4WD with a mid-rear motor layout for balanced off-road running. At 425 mm long, 230 mm wide and 150 mm high, the buggy carries a low racing stance with the ground clearance and suspension travel needed for dirt tracks, jumps and uneven sections. A longitudinal battery position supports the chassis balance, and the battery loads through the bottom of the frame so routine access does not require body removal. Full ball bearings reduce drivetrain friction across the running gear, while steel drive shafts with joint cups and a main shaft with steel pinion gear support the transfer of power. The suspension uses extra long arms, rear racing uprights and independent double wishbones to keep the buggy composed when the surface breaks up. An aluminum motor mount plate adds a rigid mounting point, and the internal gear ratio is 2.94. A 540 type motor is included. On a hard dirt track, the larger diameter and width of the off-road tire setup help the buggy settle into ruts and carry speed through linked corners. The rear wing and low body shape give the model a focused racing look on the stand between runs. Radio gear, a battery pack, a charger and an electronic speed controller are required separately.



Warning! Not suitable for children under 14 years.


Product details

Technical Details:
• 4-Wheel-Drive Buggy
• Aluminum propeller shaft
• Fully ball bearing

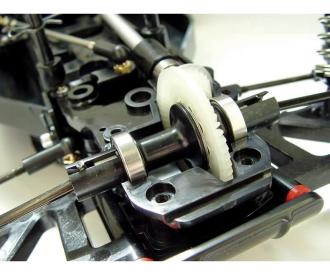

• Front/rear ball differential
• Reinforced composite plastic wishbones
• Adjustable toe-in and camber
• Steel drive shafts with joint cups
• Steel shafts for wishbone attachment

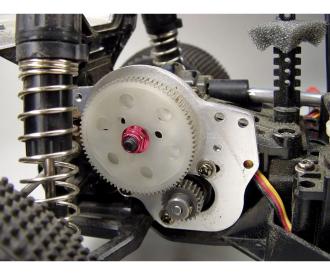

• Aluminum motor mount plate

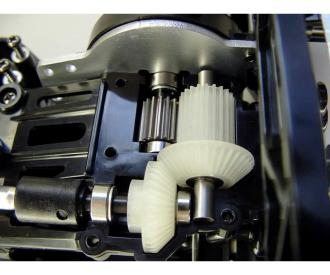

• Main shaft with steel pinion gear
• Rear racing uprights
• Rigid plastic bathubframe chassis with countersunk screws

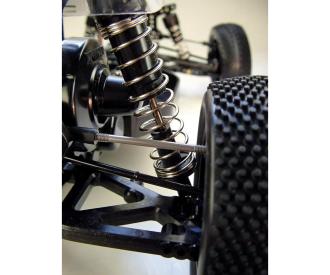

• C.V.A. oil-filled shock absorbers
• High grip spike tires
• Foam ring tire inserts (yellow)
• Lightweight, one-piece racing wheels in white
• Clear polycarbonate body
• Polycarbonate rear wing

Technical specifications:
• Length: 425 mm
• Width: 230 mm
• Height: 150 mm

Bauanleitung (PDF/3,41 MB)
Tuningliste (PDF/307 KB)
Beiblatt (PDF/112 KB)
