M-07 Concept Carbon Damper Stay Rear RC Part

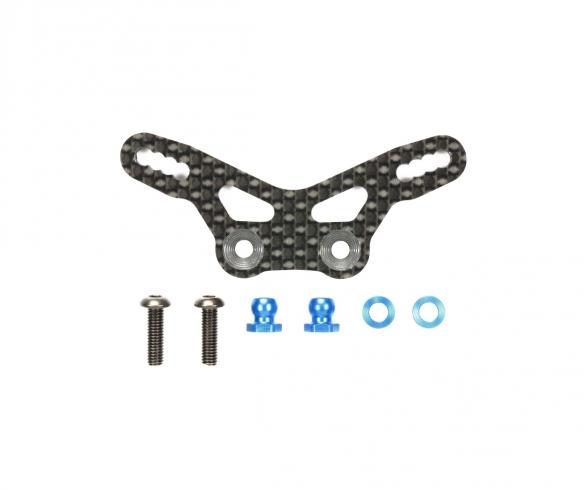

The M-07 Concept Carbon Damper Stay Rear brings a sharper suspension mounting setup to the M-07 Concept chassis with a 3 mm carbon fiber plate that combines lower weight with greater rigidity than the kit standard part. Mounted at the rear, it gives the damper area a more precise base for setup changes while keeping the upgrade focused on a key handling point. Its layout expands tuning range with 4 attachment holes, doubling the 2-hole arrangement of the standard shock tower. That wider choice of mounting positions supports more exact damper angle changes when dialing the chassis for different track conditions. The set also includes attachment screws for installation. Instruction data shows use with M-07 L and M-07 M configurations, and the carbon stay is installed in place of part B12. The manual also notes part direction during fitting and specifies 3 x 10 mm screws, 3 x 1 mm spacers and 5 mm ball connector nuts in the assembly layout. On a prepared M-07 Concept build, this rear stay suits tuning sessions where suspension geometry changes are tested one step at a time. It also fits maintenance work that replaces the standard molded part with a carbon fiber alternative at the rear shock mounting area.
