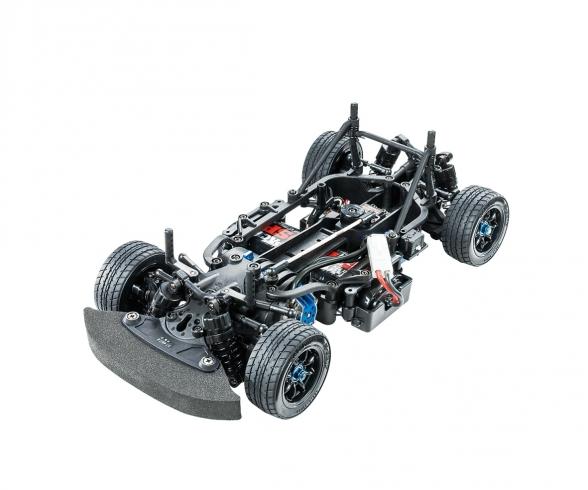

1:10 M-07 Concept Chassis Kit, RC assembly kit

1:10 M-07 Concept Chassis Kit, RC assembly kit

(1)

Article number: 300058647
Age recommendation: from 14 years

€194.99

incl. VAT

free shipping
(within the EU)

Quantity:

Add to wish list

Please wait

Added to wish list

Your Browser is not supported or Javascript is disabled.

Delivery time 1-3 working days within Germany

This item can only be delivered to the following countries:
Germany, Austria, Portugal, Netherlands, Hungary

Product information

The 1:10 M-07 Concept Chassis Kit is a front-wheel-drive RC assembly kit built around a rigid 1-piece monocoque with lower deck and integrated upper frame sections. At 332 mm long and 164 mm wide, the layout keeps the running gear compact and direct, creating a chassis that responds quickly while leaving core service points easy to reach between sessions. The M-07 uses 4-wheel double wishbone suspension with newly designed long arms and dedicated long steering linkage components. That geometry gives a wide setup window and supports measured changes in handling when rear toe is adjusted with spacers. The differential can be removed from the underside with minimal disassembly, which helps when tuning or servicing the drivetrain. Full ball bearings reduce friction through the transmission, and the chassis is also compatible with low-profile servos and standard IFMAR square-shaped Li-Po battery packs. Stabilizers can be fitted separately, and reinforced body mounts provide a more secure shell attachment. On a home workbench, the selectable 225 mm or 239 mm wheelbase opens the chassis to different M-chassis body combinations. At the track, the direct front-wheel-drive layout, oil-damped suspension and accessible setup points support repeatable changes that can be felt clearly from one run to the next.

Warning! Not suitable for children under 14 years.

Product details

Technical details:
- 1/10 scale kit model
- Length: 332mm, width 164mm
- Main element is a one-piece chassis monocoque with
integrated top frame

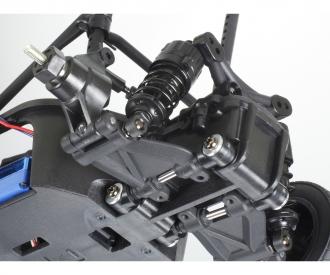

- 2 wheelbases selectable: M 225mm or L 239mm (by changing
the rear swingarm mount)

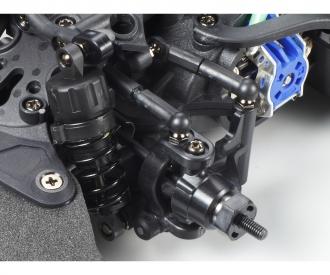

- Newly designed front and rear suspension with long
Swing
- Long linkage
- Rear toe-in can be easily adjusted by changing spacers
be adjusted
- CVA oil pressure shock absorbers

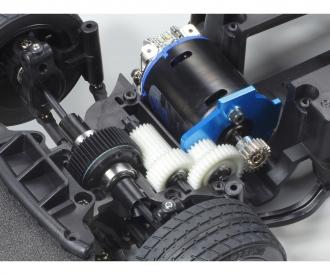

- TA-06 differential and ball bearings
- Many tuning parts available soon
- Can be retrofitted with stabilizers
- Compatible with low profile servos

Technical specifications:
1:10 scale
Length 332mm
Width 164mm
Wheelbase Medium: 225 mm / Long: 239 mm
