M-07C Alu Rear Suspension Mount Set, RC chassis

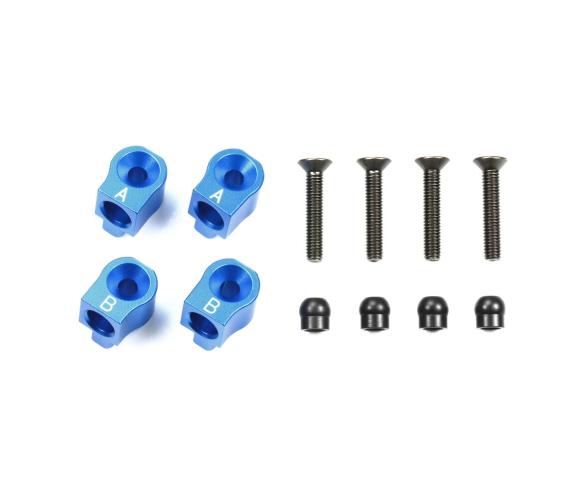

The M-07C aluminum rear suspension mount set adds a focused chassis tuning option to M-07 Concept cars by changing the position of the rear suspension shafts. Each mount uses suspension ball holes offset by 0.5 mm from the standard layout, giving 2 different mounting positions that alter rear suspension arm skid angle at the back of the chassis. The set contains 4 aluminum rear suspension mounts in 2 types, with 2 A parts and 2 B parts, plus the small attachment parts needed for fitting. The mounts replace the standard D4 parts on both sides. Instruction diagrams show 2 example geometry settings, including 1.3° skid angle and 0° skid angle, illustrating how the shaft position changes the rear setup. This adjustment also changes rear roll characteristics, making the set useful when tuning handling for different track conditions. The blue anodized finish gives the machined parts a clear visual distinction during assembly and setup checks. Mounted at the rear of the chassis, these parts suit bench tuning sessions where suspension geometry is adjusted step by step and then checked again after running. For M-07 Concept cars used on changing surfaces, the alternate mount positions create a direct way to refine rear-end response through hardware rather than guesswork.
