TT-02 Type-S Carbon Damper Stay Front, RC chassis part

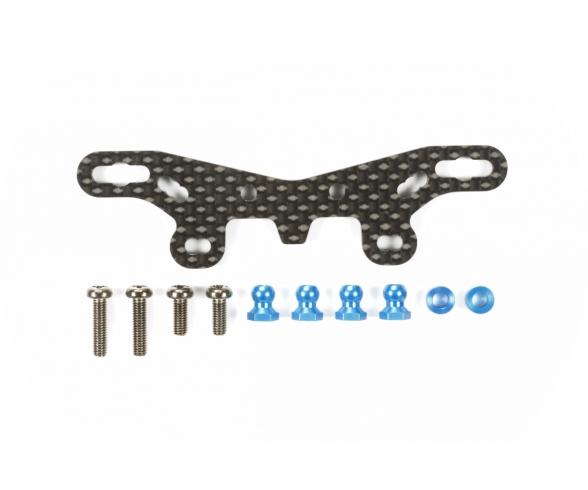

The TT-02 Type-S Carbon Damper Stay Front is an RC chassis upgrade part that brings a stiffer carbon fiber structure to the front damper area. Mounted in place of the standard fiberglass stay, it supports more effective damper movement and gives the front suspension section a more rigid mounting base during running and setup work. The plate uses a symmetrical carbon fiber layout with multiple round holes, elongated slots and lower mounting tabs to position the front dampers and related hardware at the shock tower area. Included small parts such as ball connector nuts are supplied for attachment. The instruction diagram specifies 3 x 12 mm screws, 3 x 8 mm screws, 5 x 6.55 mm ball connector nuts and 5.5 x 3.0 mm spacers for the mounting sequence, while shaded chassis parts shown in the diagram are not included in the set. The part is designed for the TT-02 Type-S chassis platform. On a TT-02 Type-S build, this front carbon stay suits tuning work focused on suspension response and mounting rigidity. Use with a standard TT-02 chassis requires separately sold reversible suspension arms, the TT-02 Type-S Aluminum Suspension Mount Set and oil dampers.
