TT-02S Steel Suspension Mount Set F/R for Chassis

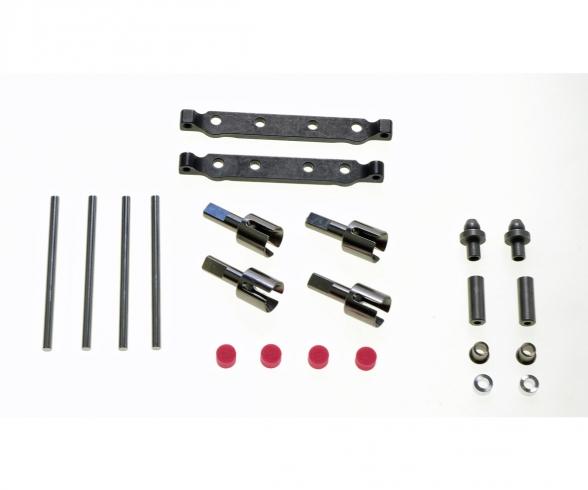

The TT-02S Steel Suspension Mount Set F/R adds a focused chassis upgrade to the TT-02 Type-S platform with steel front and rear suspension plates and matching hardware for both ends of the car. The revised plate design opens up rebound stopper compatibility, giving the suspension layout more room for detailed setup changes during track preparation. Alongside the front and rear plates, the set contains 4 gearbox joints plus front and rear suspension shaft adapters, with spacers and flanged pipes supplied to complete the installation hardware. One black plate is marked 3.0, and the rear mount is designed to give 3 degrees of toe-in, a geometry choice that helps the chassis settle more cleanly in higher-speed sections. The parts are intended for TT-02 Type-S chassis use. Suspension arms and uprights are not included. For standard TT-02 chassis use, separately sold damper stays are required at the front and rear, along with oil dampers. This makes the set a strong choice for builders refining a current TT-02 Type-S machine or planning a more exact suspension layout around optional rebound stoppers and chassis-specific hardware.
