Product details
- This is a 1/10 scale R/C model assembly kit. Length: 371mm, width: 167mm, height: 141mm (tentative). Wheelbase: 209mm (S).

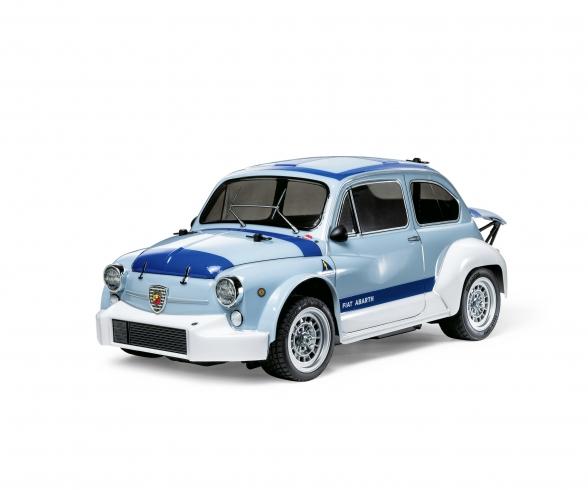

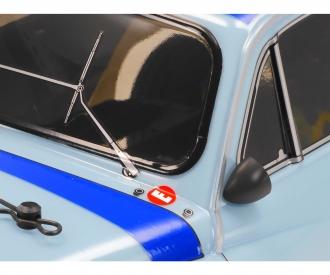

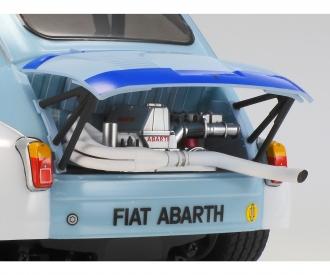

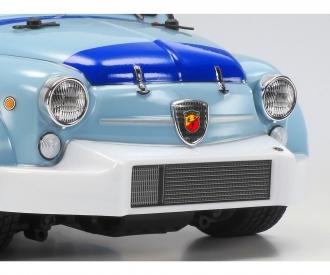

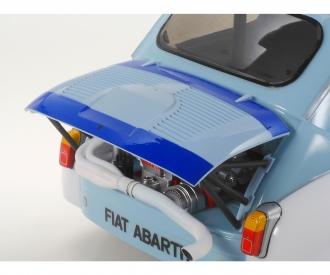

- The form of the Fiat Abarth 1000 TCR Berlina Corse is recreated in lightweight polycarbonate.
- Body, blue (new color) stickers, and wheels are from Item 58465 (1/10 R/C Fiat Abarth 1000 TCR Berlina Corse (M-05)).
- Radial tire size is different between front (55mm tires) and rear (60D
tires) to render the different tire size of the actual car. (Item 58465 used 55mm slick tires for both front and rear.)
- Use Item 50568 M-Chassis Radial Tires or Item 53215 M-Chassis Slicks for front and 60D tires for rear when changing tires.
- Length: 322mm, width: 163mm. Wheelbase: 209mm (S) / 224mm (M) / 239mm (L) (*).

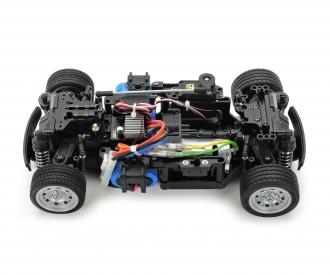

- The multi-purpose, 2WD MB-01 chassis gives choices of three types of
wheelbase (*), and front- or rearwheel drive system. Six setups are available in total.
- Simply change attachment directions of final gears and steering
linkage to switch between front- and rearwheel drive; low or high motor position can be chosen for rear-wheel drive cars.

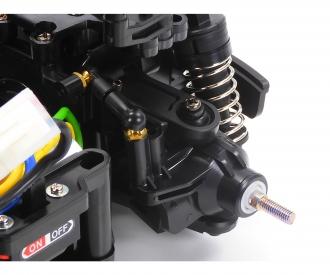

- Unitized sections such as motor mount and final gears facilitate ease of assembly and effective maintenance.

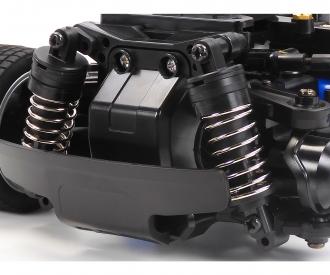

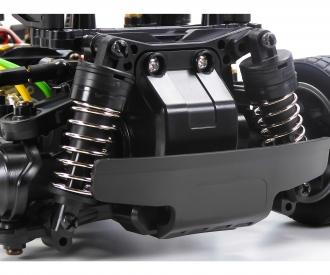

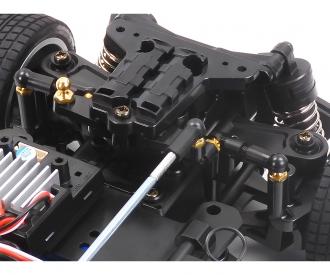

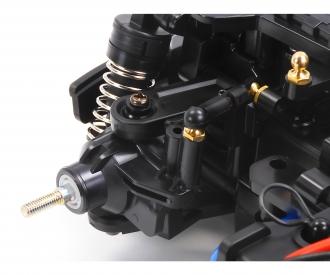

- The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
- While this is a 2WD model, multi-link suspension is compatible with
tires featuring the same compound and rear tire with toe-in as 4WD models.
- Gear ratio: 5.83:1 (when using kit-standard 29T pinion gear)
- Many Hop-Up Option parts for M-chassis and TT-chassis cars can be used to fine-tune setup.
Hi

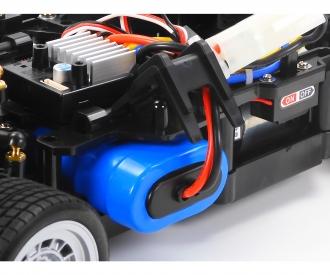

What are the Electronic Speed Control (esc) and servo specifications for this set (Fiat Abarth, MB-01).
Thanks in advance
Regards
Service Team
Hier findest du die genauen Daten:
https://www.carson-modelsport.com/carson_de/ersatzteile-zubehoer/rc-zubehoer/elektromotoren-regler/fahrregler-dragster-brushed-70a-500906264-de.html?wse=1
Eine Servo musst aber noch dazu erworben werden, z.B.:
https://www.carson-modelsport.com/carson_de/ersatzteile-zubehoer/rc-zubehoer/fernsteueranlagen/servo-cs-5-5-kgjr-stecker-500502016-de.html?wse=1
Viele Grüße, Dein Online Team :)
