TRF Dampers Reinforced V Parts, damper upgrade set
- Article number: 300054871
- Age recommendation: from 14 years
€8.19
incl. VAT plus P&P
Quantity:
Delivery time 1-3 working days within Germany
Product information
Reinforced V Parts for TRF Dampers update the standard mounting and spring support pieces with redesigned shapes and material, opening up more setup options for suspension tuning. The set is built around TRF damper maintenance and adjustment, so worn parts can be replaced while the damper layout is matched more closely to the chassis setup in use.

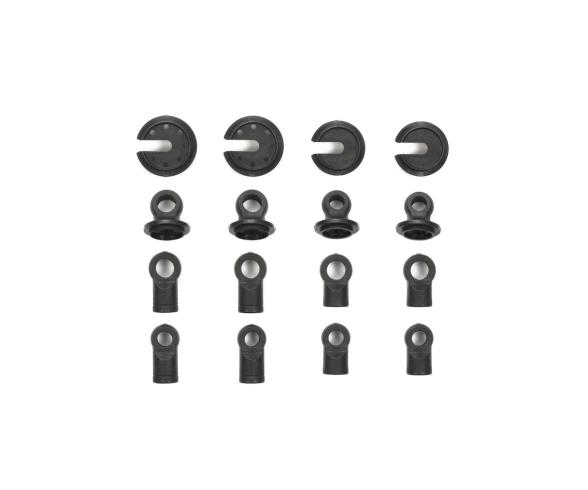

Inside the set are 5 mm damper ends in S and M, 5.8 mm damper ends in S and M, 5 mm damper tops, 5.8 mm damper tops, and spring retainers in S and M. The instruction data notes that parts are chosen according to damper length, and one spring retainer version is specified for large diameter springs. One step requires a 1 mm hole as shown in the technical diagram, and the ball connector is pressed in from the indicated side on the relevant parts. For use with V2, V3 and V7, separately sold dedicated 5.8 mm damper ball connector nuts and a cylinder cap are required.
This set suits routine damper overhauls, chassis retuning between runs, and replacing standard TRF damper parts with reinforced alternatives. It is compatible with TRF Dampers such as Items 53571, 53901 and 54000 when used with Item 53334, making it a focused upgrade for established TRF suspension setups.
Warning! Not suitable for children under 14 years.
