Article number: 300042383
Product: 1:10 RC TB Evo. 8 Chassis Kit
Carbon fiber components:
lower deck / upper decks x4 (two each for front mid motor layout or rear mid motor layout respectively) / R/C equipment deck
Aluminum components:
one-piece lower bulkheads / front upper bulkhead / rear upper bulkhead / motor mount /
propeller shafts (two for front mid motor layout and one for rear mid motor layout) / servo mount /
center stiffener / king pin balls (Item 22016) / steering bridge / battery mount & mount spacer
Polycarbonate component:
Differential covers
WARNING!
Read carefully and fully understand the instructions before commencing
assembly. A supervising adult should also read the instructions if a child assembles the model.
When assembling this kit, tools including knives are used. Extra care should be taken to avoid personal injury.
Read and follow the instructions supplied with paints and/or cement, if used (not included in kit).
Keep out of reach of small children. Children must not be allowed to put
any parts in their mouths, or pull vinyl bags over their heads.
Product details

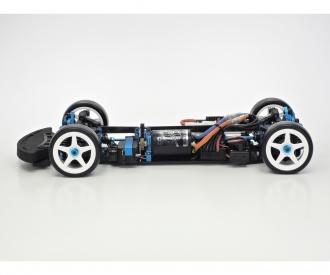

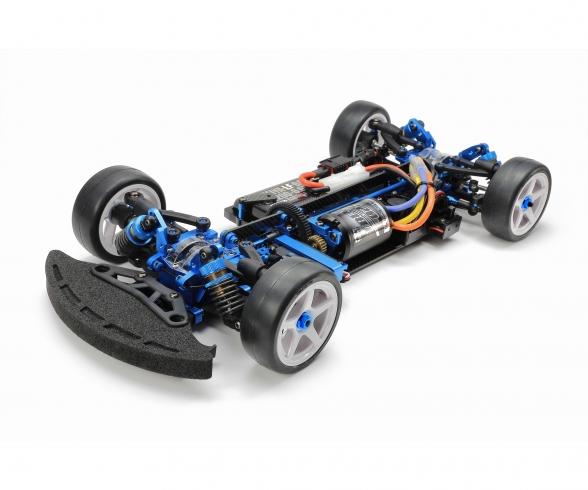

- This is a 1/10 scale R/C shaft driven 4WD chassis assembly kit.
- Choose from two types of motor layout - front mid motor layout or rear mid motor layout.
- Lower deck and vertical upper decks are crafted in carbon fiber, and ensure pitch rigidity.
- Aluminum bulkhead and damper stay are one-piece component.
- 7mm suspension balls and king pins are combined for smooth motion. (= Item 22016)

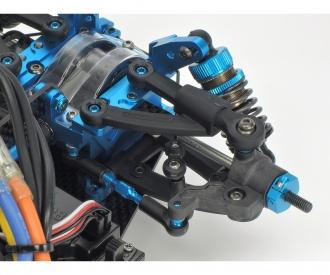

- The front A-shaped arm suspension employs Super Short Big Bore dampers and uses 5.8mm balls to
- connect top and bottom sections for superior responsiveness.

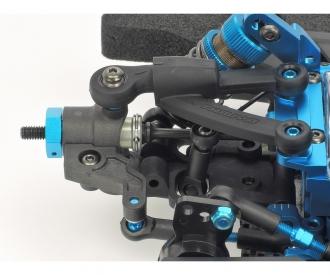

- The rear suspension utilizes tie rods for easy adjustment of toe angle on upright side.

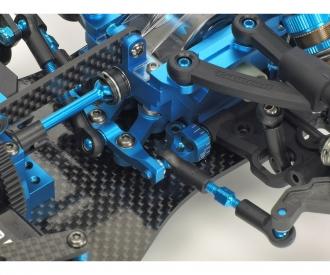

- The steering linkage is affixed directly to bulkhead to limit any impact upon chassis roll.

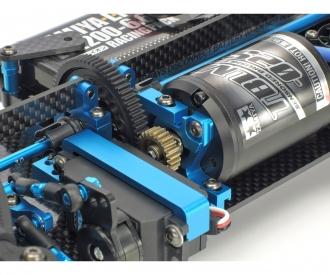

- Features efficient, fuss-free adjustment of motor backlash via two screws on chassis upside.

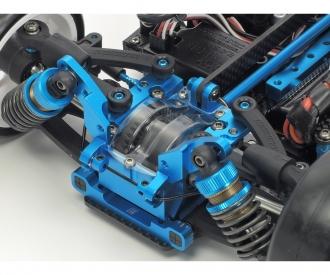

- Highly-efficient shaft-driven 4WD is achieved with a front direct coupling and double cardan drive shafts,
- plus a rear gear differential unit and aluminum drive shafts.
- Uses urethane front bumper (from Item 58693: TA08 PRO chassis) for great aerodynamics.
