Product information

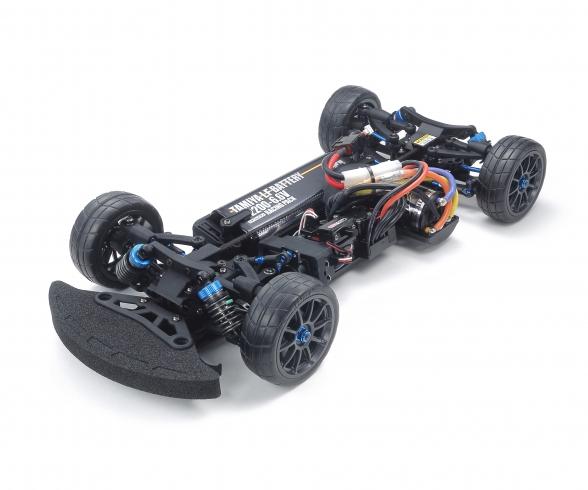

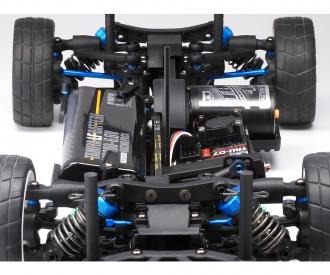

The TA08 PRO Chassis Kit is a 1:10 R/C touring car chassis built around a stepped-V layout that balances rigidity with weight distribution for composed on-road running. Its battery pack and servo are mounted on a slight 10 degree angle, reducing surface contact and helping the chassis settle cleanly through direction changes.

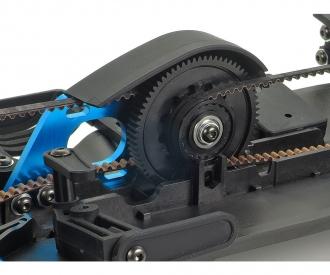

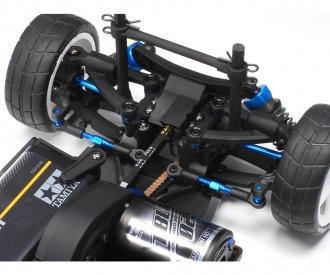

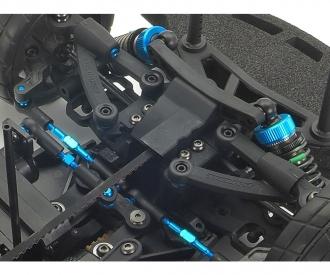

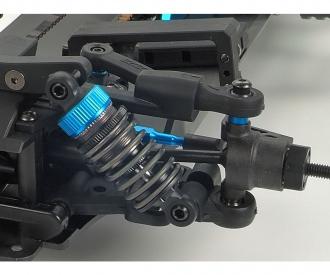

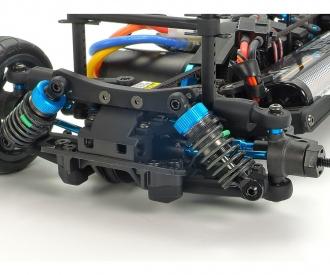

A spur gear positioned in front of the motor contributes to stable drivability, while the 2 belt-driven 4WD system works with TRF420 gear differentials and steel TA07 differential joint cups. Super Short Big Bore dampers, universal shafts and full bearings add further mechanical precision across the rolling platform. The A-arm suspension layout keeps the center of gravity low, and camber plus caster settings can be adjusted with turnbuckle shafts and lower arm spacers to refine the setup for track conditions.

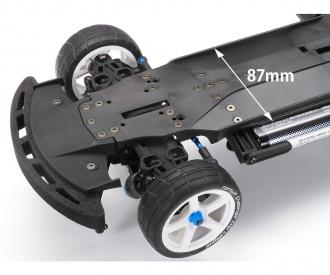

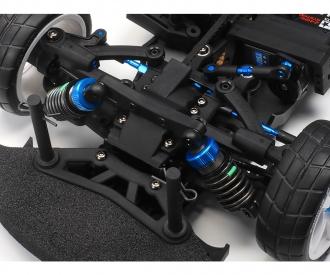

Body mounts rotate by 180 degrees to switch between standard and 2 mm advanced body positions, adding another tuning option when matching the chassis to a shell. This kit suits bench setup, circuit tuning and repeated on-road sessions where drivetrain response, suspension geometry and chassis balance all matter. R/C equipment, a motor, a battery pack, tires and a body are required separately.
