Adjustable Suspension Mount E, aluminum RC part
- Article number: 300054882
- Age recommendation: from 14 years
€18.29
incl. VAT plus P&P
soon available again
We will notify you by email as soon as this item is available again.
Product information

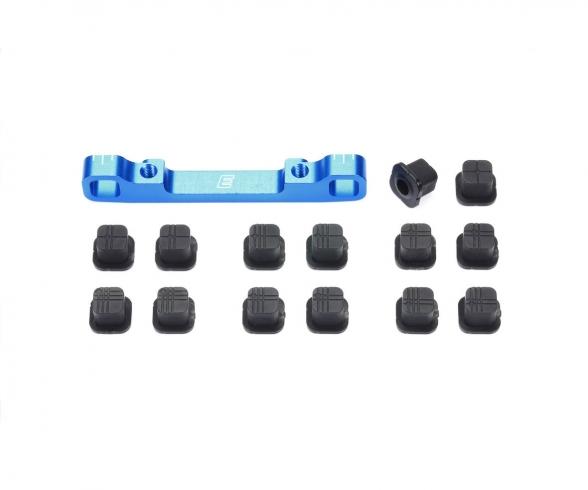

The Adjustable Suspension Mount E is a focused RC tuning part for chassis setup changes that go beyond a fixed suspension block. Its aluminum construction replaces the standard suspension mount and works with interchangeable bushings to alter toe angle, tread, roll center and skid angle in one compact assembly. The blue anodized finish gives the part the familiar Tamiya appearance while keeping the function clearly visible during setup work.
The included bushing sprue carries 7 pairs of bushing types, each with a different suspension shaft hole position. Together they create 25 potential shaft offset positions, so small geometry changes can be made by selecting and rotating the inserts rather than changing the whole mount. This E mount allows settings between C and G, and the final toe angle depends on the separate suspension mounts and bushings used alongside it. The instruction data also notes that shims can be used as needed to adjust clearance during installation.
On the bench, this part suits repeatable tuning sessions where a chassis is adjusted step by step for different track layouts and handling goals. It is compatible with TRF419, TA07 and TB-05 chassis cars, making it a direct upgrade path for drivers refining suspension response within those platforms.
