Alum. Adjustable SepSusMt (A), RC chassis mount
- Article number: 300054884
- Age recommendation: from 14 years
€25.99
incl. VAT plus P&P
Quantity:
Delivery time 1-3 working days within Germany
Product information
Alum. Adjustable SepSusMt (A) brings bushing-based suspension tuning to compatible RC chassis cars with a compact aluminum mount set that replaces the standard suspension mount. The two separate mounts, A-a and A-b, work with offset bushings to alter suspension shaft position, opening detailed setup changes that can be felt in how the chassis is balanced for different track conditions.

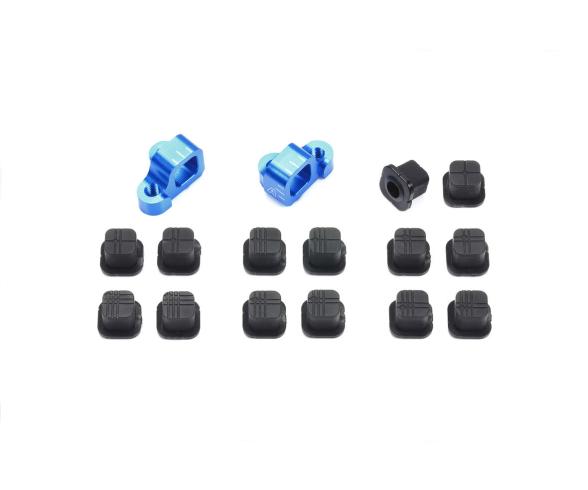

The set contains 1 Aluminum Adjustable Suspension Mount (A-a), 1 Aluminum Adjustable Suspension Mount (A-b) and 1 bushing sprue. The bushing sprue provides 7 pairs of bushing types, and each type uses a different hole position for the suspension shafts. Rotating and pairing those bushings creates 25 potential shaft offset positions, which allows fine adjustment of toe angle, tread, roll center and skid angle. The mount itself allows settings between XA and C, while the final toe angle depends on the separate suspension mounts and bushings used. Shims can be used to adjust clearance where needed.
The blue anodized finish gives the aluminum parts the familiar Tamiya look on the chassis. Compatibility is stated for TRF419, TA07 and TB-05 chassis cars, making this set a focused upgrade for racers refining suspension geometry with measured, repeatable changes.
