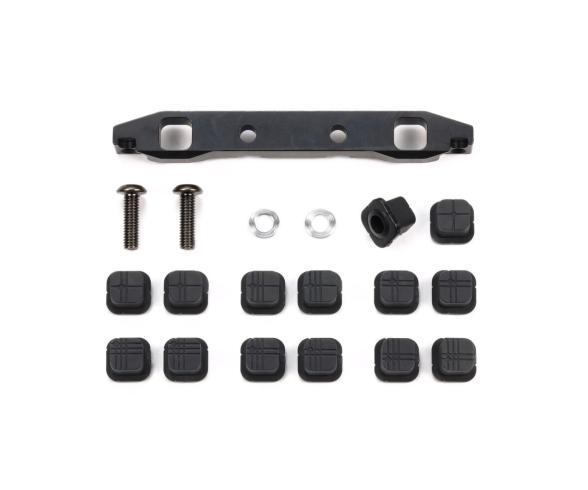

TT-02S Steel Adjustable Rear Suspension Mount

The TT-02S Steel Adjustable Rear Suspension Mount brings the adjustable rear mount system from the TT-02 Type-SR chassis to compatible TT-02 Type-S based cars. A steel mount replaces the standard rear B8 suspension plate and gives the rear suspension a firm mounting point, while the included plastic bushings change the position of the suspension shaft holes for detailed chassis setup work. Those bushing offsets do more than alter one setting. Different combinations can adjust rear toe and skid angle, and they also affect wheelbase and tread. The instruction diagram shows setup examples around the standard N1 position, with further options through N2 to N7 bushings. That makes this Hop-Up Option useful for drivers refining rear-end balance, throttle response and roll characteristics through measured geometry changes rather than broad parts swaps. On a prepared circuit car, these adjustments help tailor the rear of the chassis to surface grip and handling preference. The set is compatible with TT-02 Type-S and TT-02 Type-SR chassis cars, and it can also be used with separately sold rebound stoppers when a wider suspension setup range is needed.
