Article number: 300047382 Product: TT-02RR Chassis Kit
RRace-Spec TT-02

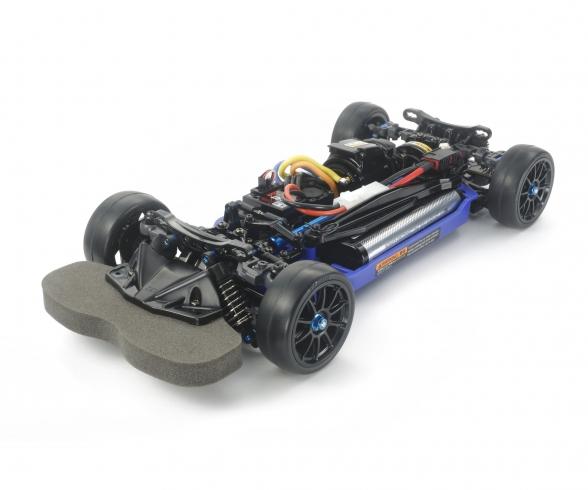

This R/C model assembly kit is a tuned variant of the TT-02 shaft-driven 4WD chassis, bristling with option parts: oil-filled gear differential units offer near infinite setup possibilities, adjustable front and rear upper arms allow alteration of camber, while the hard lower deck is molded in a stylish blue. Also in the kit are aluminum propeller shaft and rear upright components, high performance CVA oil dampers, 10-spoke wheels, medium narrow slick tires (with inner sponges) and full ball bearings.
Separately Required Items
★Body
★Type 540 Motor (brushless is recommended)
★2-channel R/C system with ESC
★Batteries for transmitter
★Battery Pack and Charger
Warning! Not suitable for children under 14 years.
Product details
Featured Components
★Aluminum Rear Uprights (3° Toe-In)
★Aluminum Motor Mount
★TT-02 Aluminum Propeller Joints
★TT-02 Aluminum Propeller Shaft
★TT-02 High-Speed Gear Set
★TT-02 Full Ball Bearing Set
★Metal Drive Shafts, Wheel Axles & Gearbox Joints
★4mm Aluminum Flanged Lock Nuts (Blue)
★5mm Aluminum Short Ball Connector Nuts (Blue)
★5mm Aluminum Ball Connectors (Blue)
★Medium-Narrow Racing Slick Tires
★CVA Dampers & Springs
★Oil-Filled Gear Differentials
★Adjustable Upper Arms
Technical data:
★Length: 400mm, Width: 180mm,
★Wheelbase: 257mm/251mm
★Tire Width/Diameter: 24/64mm (Front & Rear)
★Bathtub-type Frame
★Shaft-Driven 4WD
★Front/Rear Die-Cast 2-Bevel Oil-Filled Differentials
★3-Piece Steering Tie-Rod
★4-Wheel Double Wishbone Suspension
★CVA Super Mini Oil Dampers
★Gear Ratio = 6.55:1 or 6.16:1
★Electronic Speed Controller (ESC) is sold separately.
