1:10 Porsche 911 Carrera RSR, RC assembly kit

1:10 Porsche 911 Carrera RSR, RC assembly kit

(1)

Article number: 300058571
Age recommendation: from 14 years

€164.99

incl. VAT

free shipping
(within the EU)

Quantity:

Add to wish list

Please wait

Added to wish list

Your Browser is not supported or Javascript is disabled.

Delivery time 1-3 working days within Germany

Product information

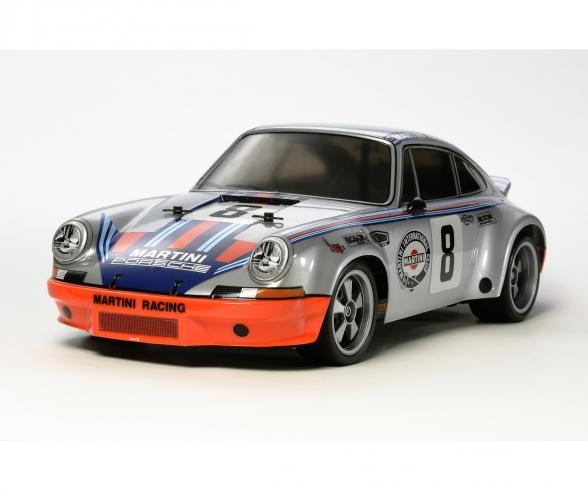

The 1:10 Porsche 911 Carrera RSR RC assembly kit brings classic racing shape to the TT-02 platform, pairing a detailed polycarbonate body with shaft-driven 4WD for controlled running on a proven chassis. At 457 mm long, 204 mm wide and 136 mm high, the model carries the low, wide stance of the original car while the integrated rear wing keeps the silhouette true to the RSR form. The TT-02 tub frame layout uses a central drive shaft to link front and rear drivetrains, and the front and rear cone differentials each use 4 bevel gears to distribute power across the axle. Toe adjustment at the front allows setup changes, while the battery compartment is designed to accept different battery types. Wheel width and diameter are 27/67 mm at the front and 32/67 mm at the rear, matching the slick tyre setup and the 251 mm wheelbase. The kit also contains a decal sheet, window masking film, an electronic speed controller and a 540 electric motor. Assembly and finishing shape the final look, with the unpainted body ready for the chosen livery and separate mirrors adding another exterior detail once fitted. On a smooth track or open paved space, the combination of adjustable gearing, independent suspension and all-wheel drive supports steady test runs, tuning sessions and repeat laps with the same chassis.

Warning! Not suitable for children under 14 years.

Product details

Technical details:
- TT-02 tub frame chassis
- 4WD all-wheel drive
- central drive shaft

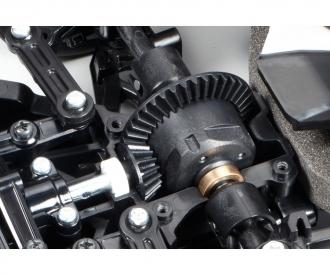

- Cone differential f/r with four bevel gears
- double wishbones f/r
- Toe adjustable front
- Independent wheel suspension with friction dampers
- electronic speed controller
- Electric motor type 540 with air cooling
- Motor mount compatible with electric motors type 380
- Battery compartment suitable for all battery types
- Gear ratio adjustable in 10 steps
- robust and detailed polycarbonate body (unpainted)
- Separate injection molded mirrors
- Slick tires
- Decal sheet and painting aids (window masking film) included

Technical specifications:
1:10 scale
Length 457mm
Width 204mm
Height 136mm
Wheelbase 251mm

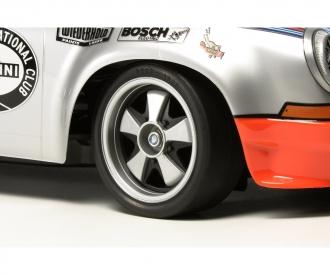

wheel width/diam. (F/H) 27/67mm - 32/67mm
