1:10 TT-02D Drift Spec Chassis, RC assembly kit

1:10 TT-02D Drift Spec Chassis, RC assembly kit

(0)
  • Article number: 300058584
  • Age recommendation: from 14 years

€149.99

Quantity:
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
Add to wish list
Please wait
Added to wish list
Your Browser is not supported or Javascript is disabled.

Delivery time 1-3 working days within Germany

Product information

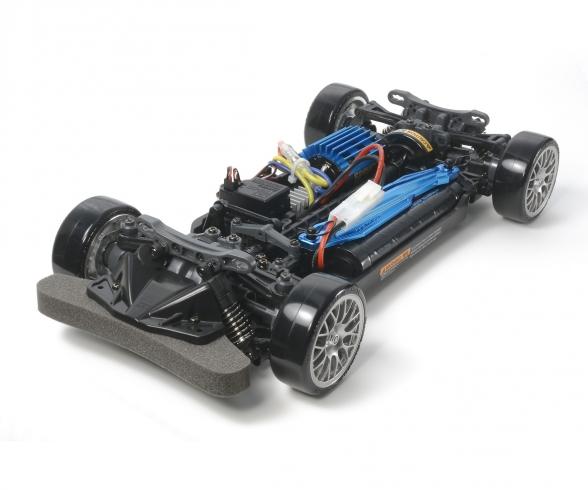

The 1:10 TT-02D Drift Spec Chassis is an RC assembly kit built around a 4WD drivetrain, a central drive shaft and a tub frame layout shaped for low contact with the road surface. With a length of 376 mm, a width of about 182 mm and a 257 mm wheelbase in the standard setup, the chassis presents a planted stance for drift-focused running on smooth tracks and paved areas. Cone differentials front and rear use four bevel gears, while the fully ball-bearing drivetrain supports efficient power transfer from the included RS-540 Sport Tuned motor. An aluminum heat sink is included for the motor area, and the battery compartment is designed to accept all battery types named for this chassis format. Metal-plated brake disc-style wheel hubs in silver and a blue battery holder add distinct visual detail to the exposed layout. The chassis also allows a normal 258 mm setting and a short 252 mm wheelbase configuration, giving extra scope when matching the platform to different body fits and handling preferences. A separately sold body can be fitted to the chassis, making the platform suitable for custom drift builds with different shells and finishes. Radio gear, a battery pack and a charger are required separately for operation, so the kit can be completed around preferred running equipment.



Warning! Not suitable for children under 14 years.


Product details

Technical details:
- TT-02D tub frame chassis
- 4WD all-wheel drive
- central drive shaft
- Cone differential f/r with four bevel gears

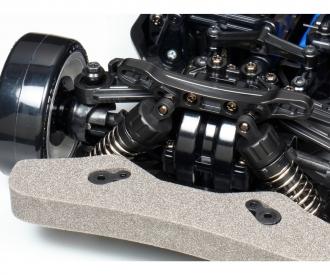

- double wishbones f/r
- completely ball-bearing
- Track adjustable, front
- Independent suspension
- CVA Mini oil pressure shock absorbers (Super Mini)
- Electric motor type RS-540 Sport Tuned

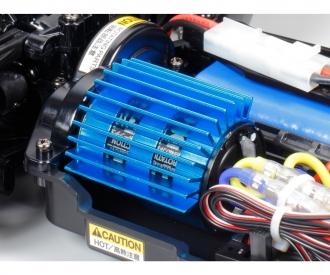

- Aluminum radiator
- Battery compartment suitable for all battery types
- Gear ratio adjustable in 10 steps
- Variable wheelbase: normal 258 mm (257) mm/short 252 mm
- Super Drifttech tires (24mm wide)

Technical specifications:
1:10 scale
Length 376mm
Width approx. 182mm
Wheelbase 257mm
Tire width 24mm
